elescopic Boom Lift Boom

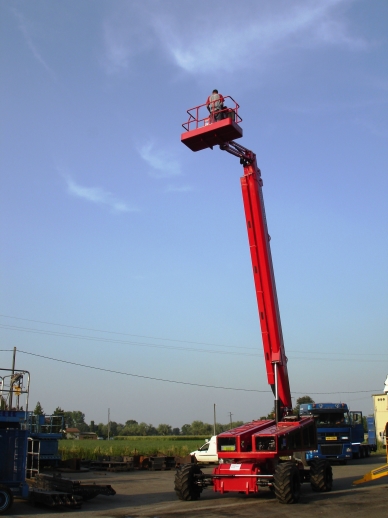

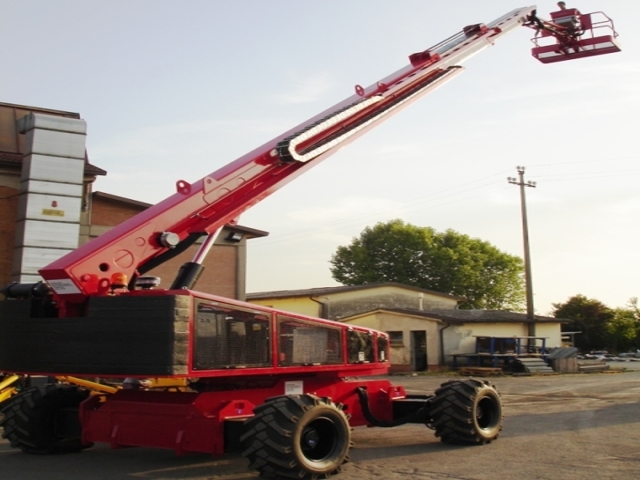

Type - SEL 28 LJE

Add to advisory
Working Height 28.00m
Working height to the basket floor 26.00m
Max. Cage Capacity 200kg
Cage Dimension 1.80x0.80x1.10m
Max. Side Outreach 24.50m
Height in stowed position 2.80m
Width 2.51m
Length 11.97m
Max Side Gradeability 30%
Engine HP kw 90
Total Weight 19820 kg
